- HP DesignJet T7200 Print Settings

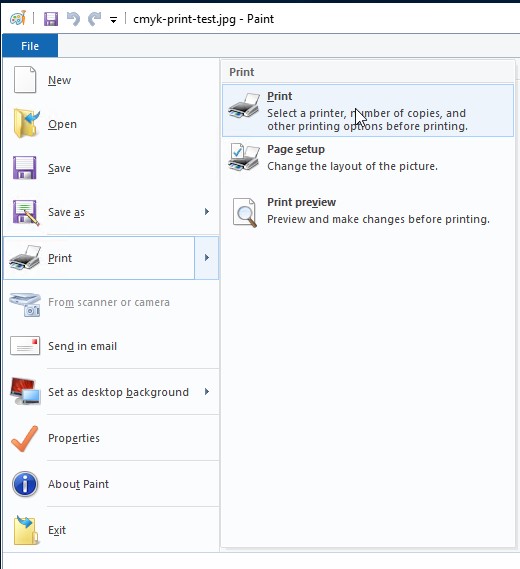

- Set Document size by selecting File > Print from the Application’s File menu as per the screenshot below…

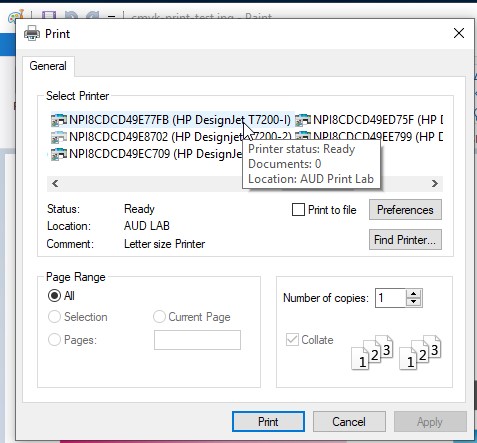

- Select the desired printer from the list then select Preferences as per the screenshot below…

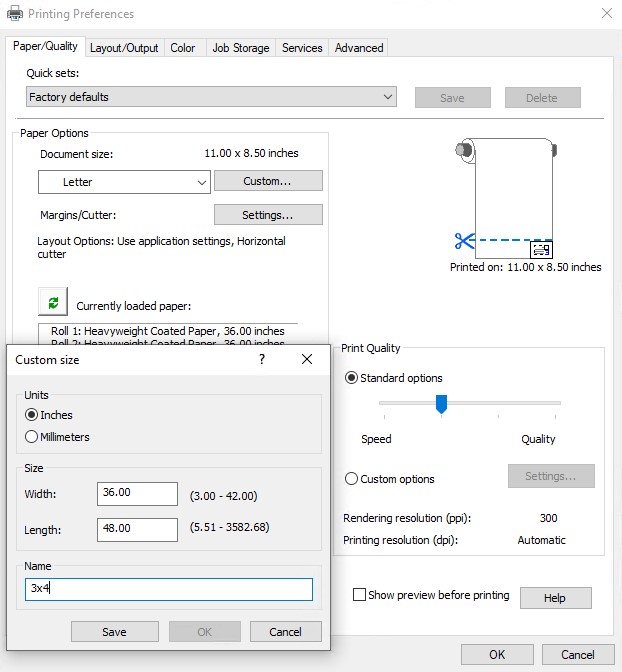

- Set your Document Size by clicking Custom button then set your desired width and length as per the screenshot below. You save the settings by entering a name in the name field then click save button…

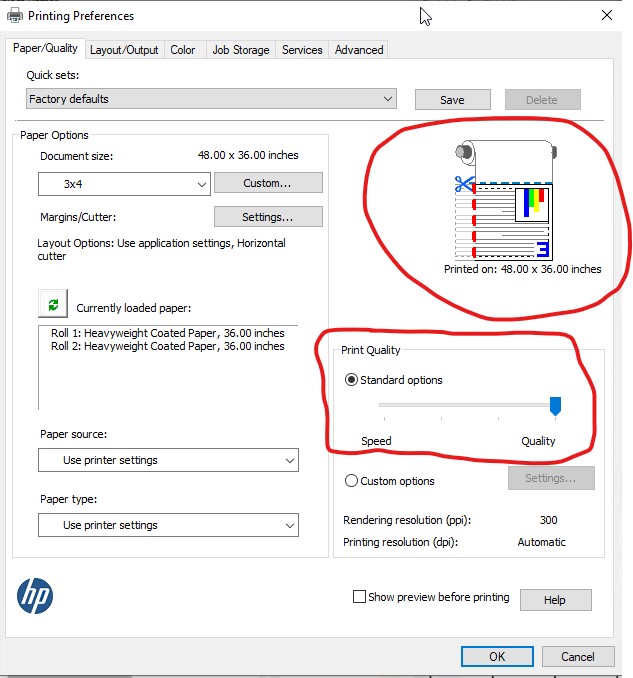

- You can set your Print Quality by moving the slider button to the far right or click custom options for more quality settings. If the preview does not look right, go to next step…

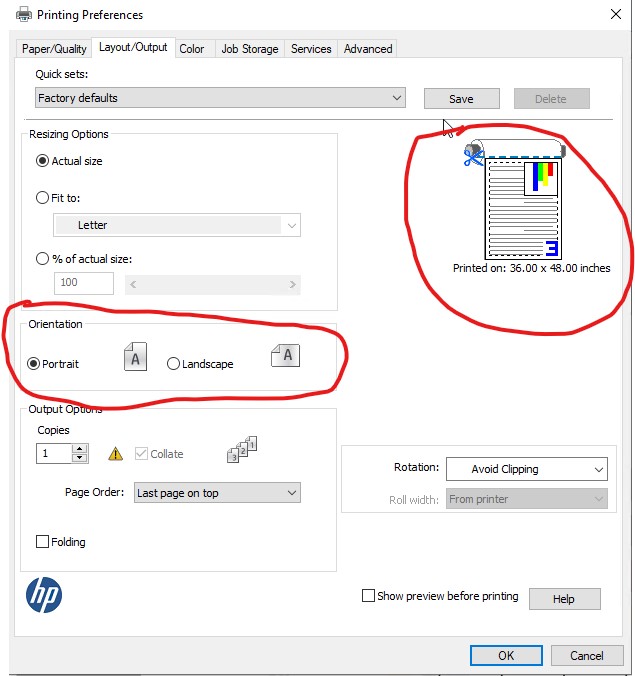

- If Preview does not look correct and you are getting clipping, Click the Layout/Output tab at the top and set orientation to the alternative setting. Your preview should now look correct as per the screenshot below…
- Click Ok to close the Printing Preferences window then Apply and Print.
